Flow Cells with Internal Reservoir

A microfluidic reservoir with one input port and one output port. The reservoir has optical windows on both the top and the bottom. This type of microfluidic reservoir is often used when observing relatively large biological entities

These flow cells are available with or without connectors:

• Without connector --par number ends with -N
• With Luer connectors -- part number ends with –L
• With UpChurch Nanoport connectors -- part number ends with -U

** Please note that the bonding agent may extend beyond the connector footprint

Not sure what connectors you need? The following article “What type of connectors should I order?” may help you.

Available in two reservoir depths.

SPECIFICATIONS:

Material and Fabrication

• Made from high-quality Fused Silica Glass
• Made from three fused silica layers thermally fused together

Flow Cell Body:

• 2" long x 1" wide
• Graduated reticle (1mm spacing) running perpendicular to channel

Available in "Thin" or "Thick" version:

• The Thin version has a 0.5mm-thick optical quality windows on the top and the bottom.
• The Thick version has 1mm-thick optical quality windows on both the top and the bottom. Select desired version in table below.

 Microfluidic Features:

• Optically-clear view of the microfluidic reservoir from both the top and bottom
• Microfluidic channel with nearly vertical walls and flat bottom
• Chamber Height: Select from table below (250 micron, 500 micron)
• Fluid Connectors: Select from table below (None, Luer, Upchurch)

Select the flow cells you want to purchase from the table below and forward your selection to our Sales department

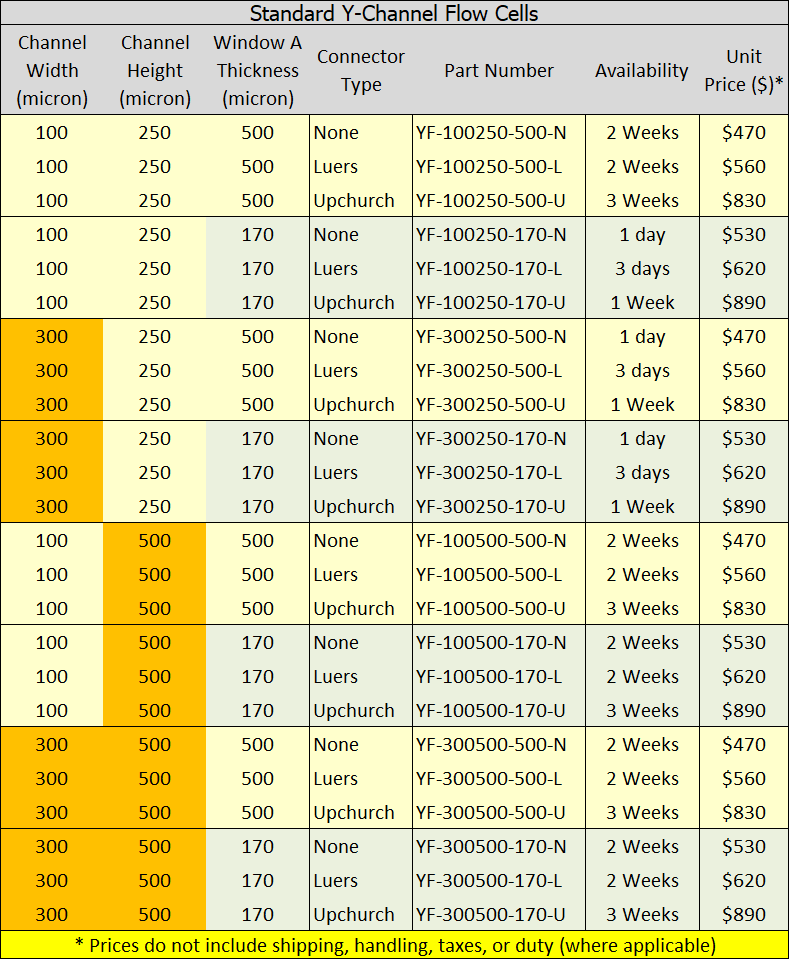

Flow Cells with Y-Channel

A fused silica flow cell with three input ports connected via a straight channel to one output port. As with all of our standard fused silica flow cells, this model has microfluidic channels with optically clear (transparent) ceiling and floor.

These flow cells are available with or without connectors:

• Without connectors -- part number ends with –N
• With Luer connectors -- part number ends with –L
• With UpChurch Nanoport connectors -- part number ends with -U

** Please note that the bonding agent may extend beyond the connector footprint

Not sure what connectors you need? The following article “What type of connectors should I order?” may help you.

Available in several channel widths and channel heights, thin or thick version

SPECIFICATIONS:

Material and Fabrication

• Made from high-quality Fused Silica Glass
• Made from three fused silica layers thermally fused together

Flow Cell Body:

• 2" long x 1" wide
• Graduated reticle (1mm spacing) running perpendicular to channel
• Available in "Thin" or "Thick" version:
  •    The Thin version has a 500µm-thick optical quality window on the top (same side as connectors) and 170µm-thick optical quality window on the bottom.
  •    The Thick version has 500µm-thick optical quality windows on both the top and the bottom. Select desired version in table below.

 Microfluidic Features:

• Microfluidic channel with nearly vertical walls and flat bottom
• Channel Ceiling: Flat, Transparent (Optical quality)
• Channel Floor: Flat, Transparent (Optical quality)
• Channel Width: Select from table below (100 micron, 300 micron)
• Channel Height: Select from table below (250 micron, 500 micron)
• Fluid Connectors: Select from table below (None, Luer, Upchurch)

Select the flow cells you want to purchase from the table below and forward your selection to our Sales department

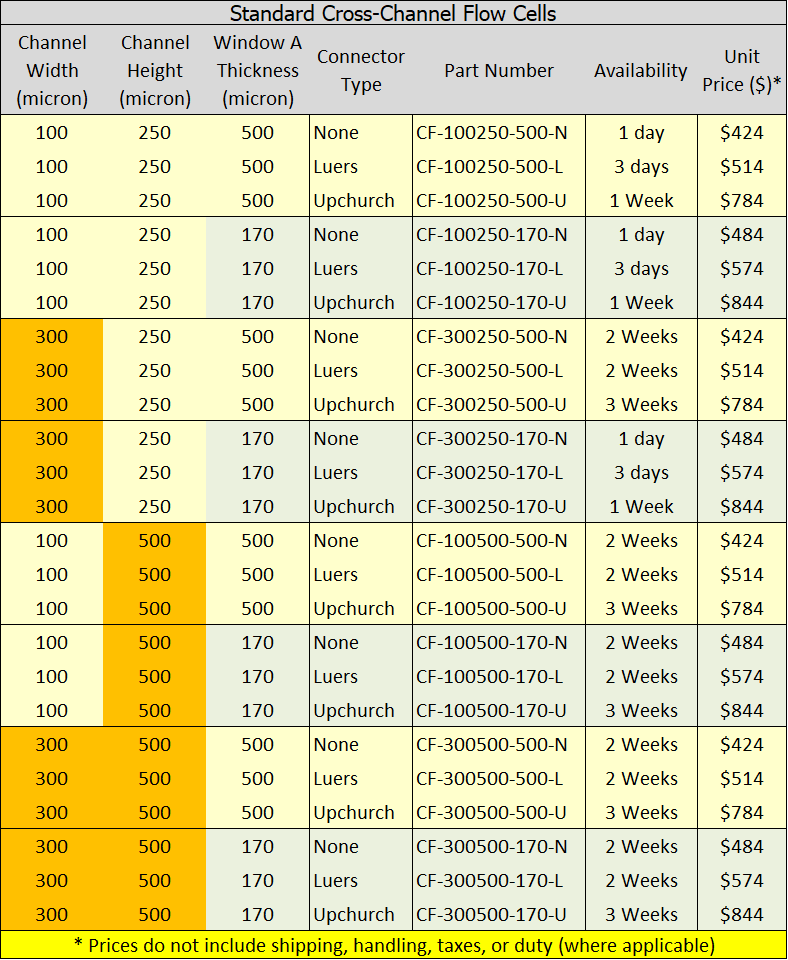

Flow Cells with Cross-Channel

A fused silica flow cell with three input ports connected via a straight channel to one output port. As with all of our standard fused silica flow cells, this model has microfluidic channels with optically clear (transparent) ceiling and floor.

These flow cells are available with or without connectors:

• Without connectors -- part number ends with –N
• With Luer connectors -- part number ends with –L
• With UpChurch Nanoport connectors -- part number ends with -U

** Please note that the bonding agent may extend beyond the connector footprint

Not sure what connectors you need? The following article “What type of connectors should I order?” may help you.

Available in several channel widths and channel heights, thin or thick version

SPECIFICATIONS:

Material and Fabrication

• Made from high-quality Fused Silica Glass
• Made from three fused silica layers thermally fused together

Flow Cell Body:

• 2" long x 1" wide
• Graduated reticle (1mm spacing) running perpendicular to channel
• Available in "Thin" or "Thick" version:
  •    The Thin version has a 500µm-thick optical quality window on the top (same side as connectors) and 170µm-thick optical quality window on the bottom.
  •    The Thick version has 500µm-thick optical quality windows on both the top and the bottom. Select desired version in table below.

 Microfluidic Features:

• Microfluidic channel with nearly vertical walls and flat bottom
• Channel Ceiling: Flat, Transparent (Optical quality)
• Channel Floor: Flat, Transparent (Optical quality)
• Channel Width: Select from table below (100 micron, 300 micron)
• Channel Height: Select from table below (250 micron, 500 micron)
• Fluid Connectors: Select from table below (None, Luer, Upchurch)

 Select the flow cells you want to purchase from the table below and forward your selection to our Sales department

Flow Cells with T-Channel

A fused silica flow cell with two input ports connected via a straight channel to one output port. As with all of our standard fused silica flow cells, this model has microfluidic channels with optically clear (transparent) ceiling and floor.

These flow cells are available with or without connectors:

• Without connectors -- part number ends with –N
• With Luer connectors -- part number ends with –L
• With UpChurch Nanoport connectors -- part number ends with -U

** Please note that the bonding agent may extend beyond the connector footprint

Not sure what connectors you need? The following article “What type of connectors should I order?” may help you.

Available in several channel widths and channel heights, thin or thick version

SPECIFICATIONS:

Material and Fabrication

• Made from high-quality Fused Silica Glass
• Made from three fused silica layers thermally fused together

Flow Cell Body:

• 2" long x 1" wide
• Graduated reticle (1mm spacing) running perpendicular to channel
• Available in "Thin" or "Thick" version:
  •    The Thin version has a 500µm-thick optical quality window on the top (same side as connectors) and 170µm-thick optical quality window on the bottom.
  •    The Thick version has 500µm-thick optical quality windows on both the top and the bottom. Select desired version in table below.

 Microfluidic Features:

• Microfluidic channel with nearly vertical walls and flat bottom
• Channel Ceiling: Flat, Transparent (Optical quality)
• Channel Floor: Flat, Transparent (Optical quality)
• Channel Width: Select from table below (100 micron, 300 micron)
• Channel Height: Select from table below (250 micron, 500 micron)
• Fluid Connectors: Select from table below (None, Luer, Upchurch)

Select the flow cells you want to purchase from the table below and forward your selection to our Sales department

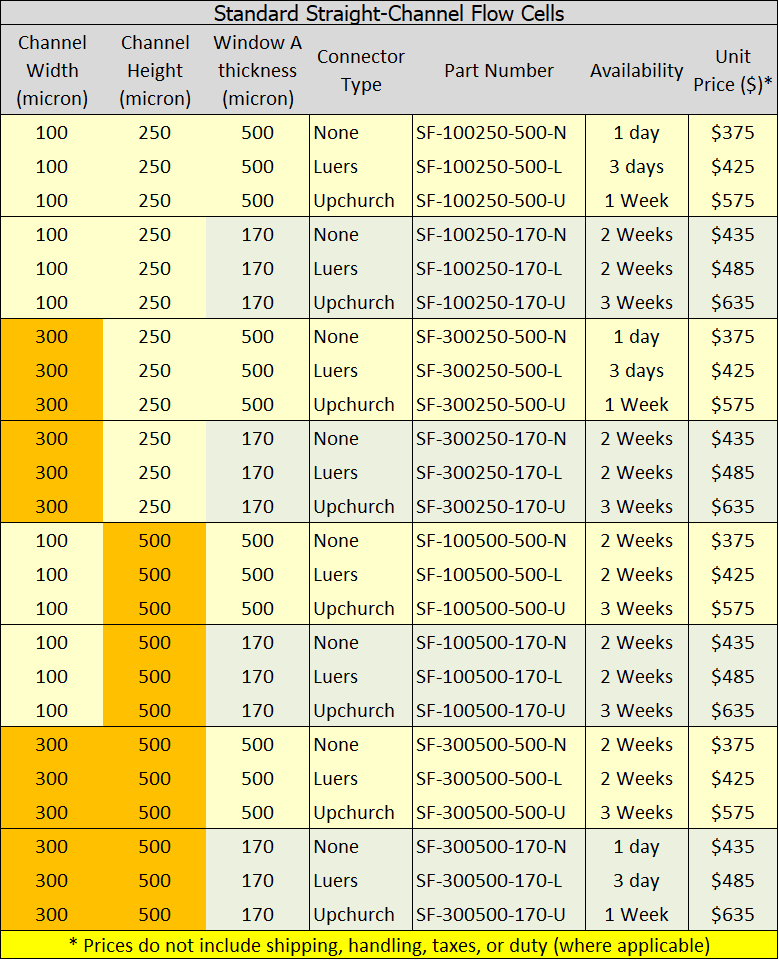

Flow Cells with Straight-Channel

A fused silica flow cell with one input port connected via a straight channel to one output port. As with all of our standard fused silica flow cells, this model has microfluidic channels with optically clear (transparent) ceiling and floor.

These flow cells are available with or without connectors:

• Without connectors -- part number ends with –N
• With Luer connectors -- part number ends with –L
• With UpChurch Nanoport connectors -- part number ends with -U

** Please note that the bonding agent may extend beyond the connector footprint

Not sure what connectors you need? The following article “What type of connectors should I order?” may help you.

Available in several channel widths and channel heights, thin or thick version

SPECIFICATIONS:

Material and Fabrication

• Made from high-quality Fused Silica Glass
• Made from three fused silica layers thermally fused together

Flow Cell Body:

• 2" long x 1" wide
• Graduated reticle (1mm spacing) running perpendicular to channel
• Available in "Thin" or "Thick" version:
  •    The Thin version has a 500µm-thick optical quality window on the top (same side as connectors) and 170µm-thick optical quality window on the bottom.
  •    The Thick version has 500µm-thick optical quality windows on both the top and the bottom. Select desired version in table below.

 Microfluidic Features:

• Microfluidic channel with nearly vertical walls and flat bottom
• Channel Ceiling: Flat, Transparent (Optical quality)
• Channel Floor: Flat, Transparent (Optical quality)
• Channel Width: Select from table below (100 micron, 300 micron)
• Channel Height: Select from table below (250 micron, 500 micron)
• Fluid Connectors: Select from table below (None, Luer, Upchurch)

Select the flow cells you want to purchase from the table below and forward your selection to our Sales department

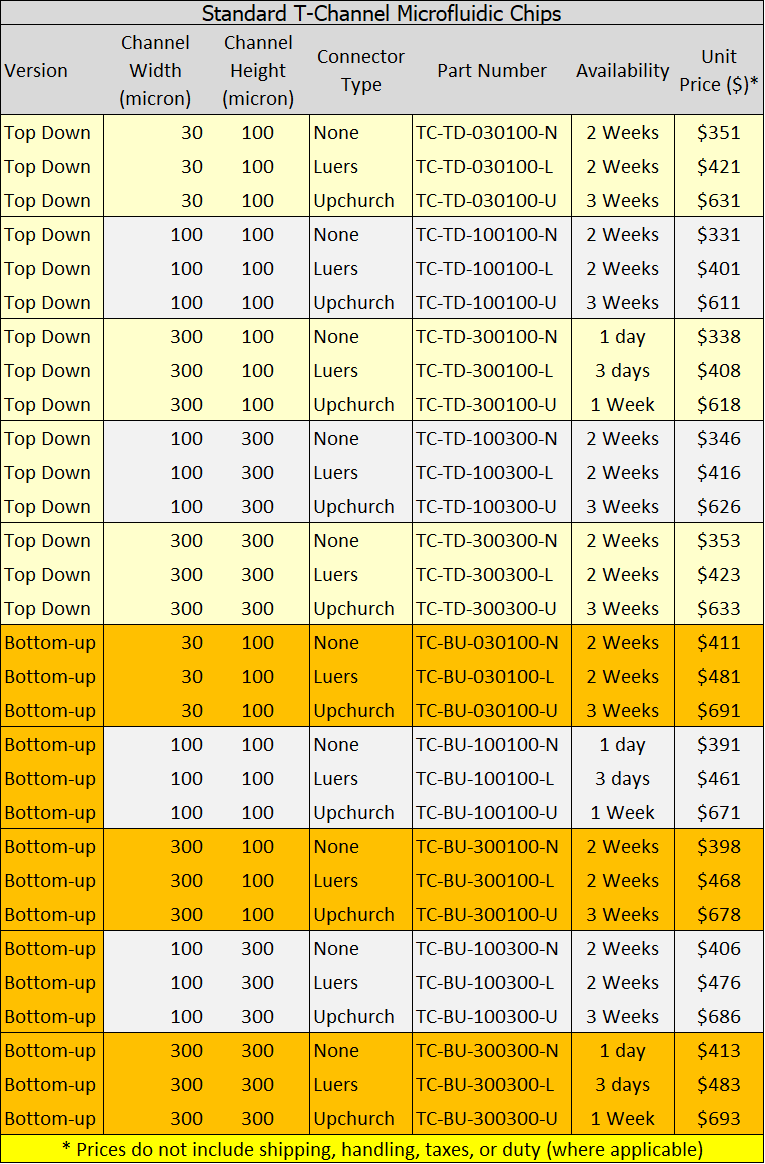

Microfluidic Mixers with Two Input Ports (T-Channel)

The main channel of this two-input ports fused silica glass microfluidic chip is patterned with asymmetrical sets of chevrons designed to facilitate streams mixing.

[Note: Mixing is a function of numerous application specific parameters such as operational pressure, viscosity, etc. – we make no representation that the mixing chips listed below are suitable for your specific application.]

As with all of our standard fused silica glass chips, this model has microfluidic channels with an optically clear (transparent) ceiling and a translucent floor.

Available in top-down or bottom-up version.

These microfluidic chips are available with or without connectors:

• Without connectors -- part number ends with –N
• With Luer connectors -- part number ends with –L
• With UpChurch Nanoport connectors -- part number ends with -U

** Please note that the bonding agent may extend beyond the connector footprint

Not sure what connectors you need? The following article “What type of connectors should I order?” may help you.

SPECIFICATIONS:

Material and Fabrication

• Made from high-quality Fused Silica Glass
• Layers are thermally fused together

Glass Chip:

• 2" long x 1" wide
• Thickness is either 1.5mm or 1.17mm, depending on Version (Top Down or Bottom Up)
• Graduated reticle (1mm spacing) running perpendicular to channel
• Configuration: Select from table below (Top-Down [Ports on top], or Bottom-Up[Ports on bottom])

 Microfluidic Features:

• Microfluidic channel with nearly vertical walls and flat bottom
• Chevron covers ~ 1/3 main channel length
• Channel Ceiling: Flat, Transparent (Optical quality)
• Channel Floor: Flat, Translucent
• Channel Width: 100 micron
• Channel Height: 100 micron (not including chevrons)
• Fluid Connectors: Select from table below (None, Luer, Upchurch)

Select the chip(s) you want to purchase from the table below and forward your selection to our Sales department

Microfluidic Chips with Y-Channel

A fused silica chip with three input ports connected via a straight channel to one output port. This design is often used to "sandwich" a primary core fluid with a secondary sheathing fluid. The core fluid is injected via the central input port; and the sheath is injected through the two side input ports.

A fused silica chip with a cross-shaped microfluidic channel connecting two input ports to one output port.

Available in several channel widths and channel heights, top-down or bottom-up version.

Our Y-channel chips have microfluidic channels with an optically clear (transparent) ceiling and a translucent floor.  This feature still allows you to visually monitor the microfluidic flow from both sides. If you prefer to have both the floor and the ceiling to be transparent, please check out our selection of flow cells.

These microfluidic chips are available with or without connectors:

• Without connectors -- part number ends with –N
• With Luer connectors -- part number ends with –L
• With UpChurch Nanoport connectors -- part number ends with -U

** Please note that the bonding agent may extend beyond the connector footprint

Not sure what connectors you need? The following article “What type of connectors should I order?” may help you.

SPECIFICATIONS:

Material and Fabrication

• Made from high-quality Fused Silica Glass
• Layers are thermally fused together

Glass Chip:

• 2" long x 1" wide
• Thickness is either 1.5mm or 1.17mm, depending on Version (Top Down or Bottom Up)
• Graduated reticle (1mm spacing) running perpendicular to channel
• Configuration: Select from table below (Top-Down [Ports on top], or Bottom-Up [Ports on bottom])

 Microfluidic Features:

• Microfluidic channel with nearly vertical walls and flat bottom
• Channel Ceiling: Flat, Transparent (Optical quality)
• Channel Floor: Flat, Translucent
• Channel Width: Select from table below (30 micron, 100 micron, 300 micron)
• Channel Height: Select from table below (100 micron, 300 micron)
• Fluid Connectors: Select from table below (None, Luer, Upchurch)

Select the chip(s) you want to purchase from the table below and forward your selection to our Sales department

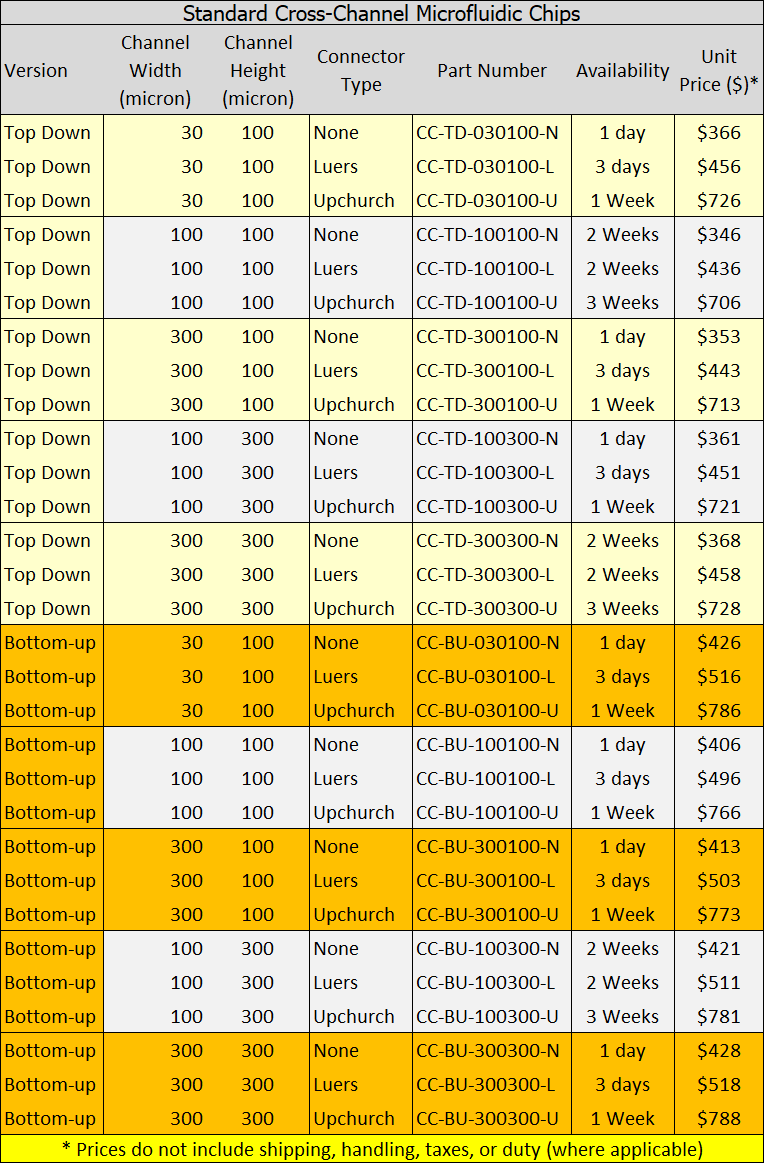

Microfluidic Chips with Cross-Channel

A fused silica chip with a cross-shaped microfluidic channel connecting two input ports to one output port.

Available in several channel widths and channel heights, top-down or bottom-up version.

Our Cross-channel chips have microfluidic channels with an optically clear (transparent) ceiling and a translucent floor.  This feature still allows you to visually monitor the microfluidic flow from both sides. If you prefer to have both the floor and the ceiling to be transparent, please check out our selection of flow cells.

These microfluidic chips are available with or without connectors:

• Without connectors -- part number ends with –N
• With Luer connectors -- part number ends with –L
• With UpChurch Nanoport connectors -- part number ends with -U

** Please note that the bonding agent may extend beyond the connector footprint

Not sure what connectors you need? The following article “What type of connectors should I order?” may help you.

SPECIFICATIONS:

Material and Fabrication

• Made from high-quality Fused Silica Glass
• Layers are thermally fused together

Glass Chip:

• 2" long x 1" wide
• Thickness is either 1.5mm or 1.17mm, depending on Version (Top Down or Bottom Up)
• Graduated reticle (1mm spacing) running perpendicular to channel
• Configuration: Select from table below (Top-Down [Ports on top], or Bottom-Up [Ports on bottom])

 Microfluidic Features:

• Microfluidic channel with nearly vertical walls and flat bottom
• Channel Ceiling: Flat, Transparent (Optical quality)
• Channel Floor: Flat, Translucent
• Channel Width: Select from table below (30 micron, 100 micron, 300 micron)
• Channel Height: Select from table below (100 micron, 300 micron)
• Fluid Connectors: Select from table below (None, Luer, Upchurch)

Select the chip(s) you want to purchase from the table below and forward your selection to our Sales department

Microfluidic Chips with T-Channel

A fused silica chip with a T-shaped microfluidic channel connecting two input ports to one output port.

Available in several channel widths and channel heights, top-down or bottom-up version.

Our T-channel chips have microfluidic channels with an optically clear (transparent) ceiling and a translucent floor.  This feature still allows you to visually monitor the microfluidic flow from both sides. If you prefer to have both the floor and the ceiling to be transparent, please check out our selection of flow cells.

These microfluidic chips are available with or without connectors:

• Without connectors -- part number ends with –N
• With Luer connectors -- part number ends with –L
• With UpChurch Nanoport connectors -- part number ends with -U

** Please note that the bonding agent may extend beyond the connector footprint

Not sure what connectors you need? The following article “What type of connectors should I order?” may help you.

SPECIFICATIONS:

Material and Fabrication

• Made from high-quality Fused Silica Glass
• Layers are thermally fused together

Glass Chip:

• 2" long x 1" wide
• Thickness is either 1.5mm or 1.17mm, depending on Version (Top Down or Bottom Up)
• Graduated reticle (1mm spacing) running perpendicular to channel
• Configuration: Select from table below (Top-Down [Ports on top], or Bottom-Up [Ports on bottom])

 Microfluidic Features:

• Microfluidic channel with nearly vertical walls and flat bottom
• Channel Ceiling: Flat, Transparent (Optical quality)
• Channel Floor: Flat, Translucent
• Channel Width: Select from table below (30 micron, 100 micron, 300 micron)
• Channel Height: Select from table below (100 micron, 300 micron)
• Fluid Connectors: Select from table below (None, Luer, Upchurch)

Select the chip(s) you want to purchase from the table below and forward your selection to our Sales department

Microfluidic Chips with Straight-Channel

A fused silica chip with a simple straight microfluidic channel connecting one input port to one output port.

Available in several channel widths and channel heights, top-down or bottom-up version.

Our straight-channel chips have microfluidic channels with an optically clear (transparent) ceiling and a translucent floor. This feature still allows you to visually monitor the microfluidic flow from both sides. If you prefer to have both the floor and the ceiling to be transparent, please check out our selection of flow cells.

These microfluidic chips are available with or without connectors:

• Without connectors -- part number ends with –N
• With Luer connectors -- part number ends with –L
• With UpChurch Nanoport connectors -- part number ends with -U

** Please note that the bonding agent may extend beyond the connector footprint

Not sure what connectors you need? The following article “What type of connectors should I order?” may help you.

SPECIFICATIONS:

Material and Fabrication

• Made from high-quality Fused Silica Glass
• Layers are thermally fused together

Glass Chip:

• 2" long x 1" wide
• Thickness is either 1.5mm or 1.17mm, depending on Version (Top Down or Bottom Up)
• Graduated reticle (1mm spacing) running perpendicular to channel
• Configuration: Select from table below (Top-Down [Ports on top], or Bottom-Up [Ports on bottom])

 Microfluidic Features:

• Microfluidic channel with nearly vertical walls and flat bottom
• Channel Ceiling: Flat, Transparent (Optical quality)
• Channel Floor: Flat, Translucent
• Channel Width: Select from table below (30 micron, 100 micron, 300 micron)
• Channel Height: Select from table below (100 micron, 300 micron)
• Fluid Connectors: Select from table below (None, Luer, Upchurch)

Select the chip(s) you want to purchase from the table below and forward your selection to our Sales department
